Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.
Accessories
DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone
MMP-ER/ES Preamp with Modular Active XLR Cable for Pencil Microphone, 3 m (9.8 ft)
MMP-GR/GS Preamp with Modular Active MicroDot Cable for Pencil Microphone, 1.8 m (5.9 ft)
UA0639 Clip for Pencil Microphone
UA0897 Shock Mount for Pencil Microphone
DUA0073 Foam Windscreen for Shotgun Microphones
Specifications

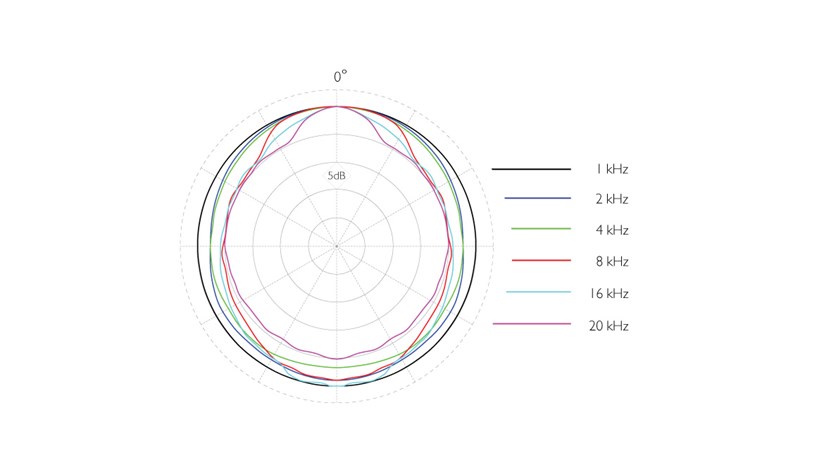

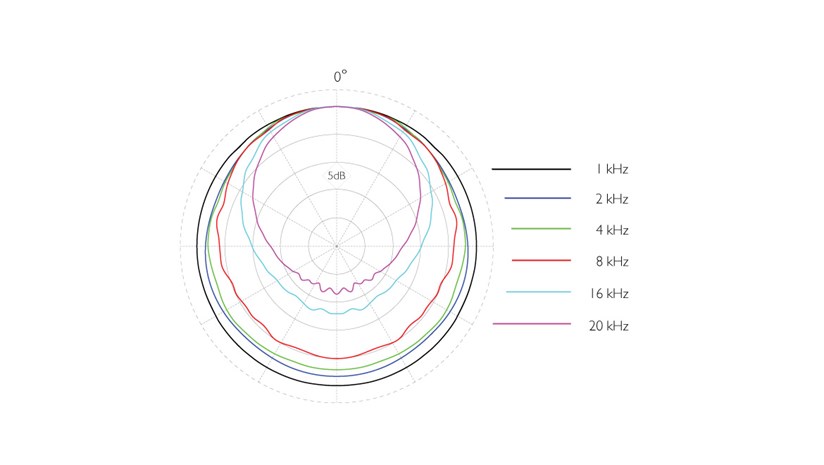

Polar pattern
Relative humidity (RH)Up to 90%
Output balance principleSignal balanced
Sensitivity, nominal, ±2 dB at 1 kHz19 mV/Pa; -34.4 dB re. 1 V/Pa
Max. SPL, THD 10%138 dB SPL peak
Minimum load impedance2
Temperature range-40°C to 45°C (-40°F to 113°F)
Frequency response20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz

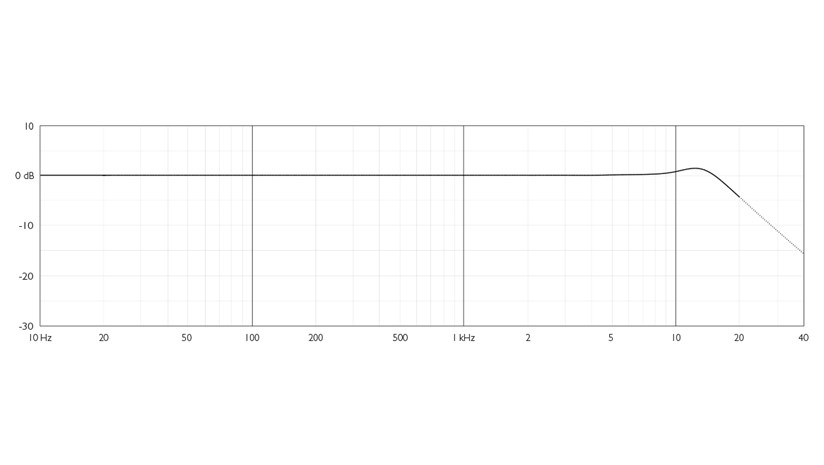

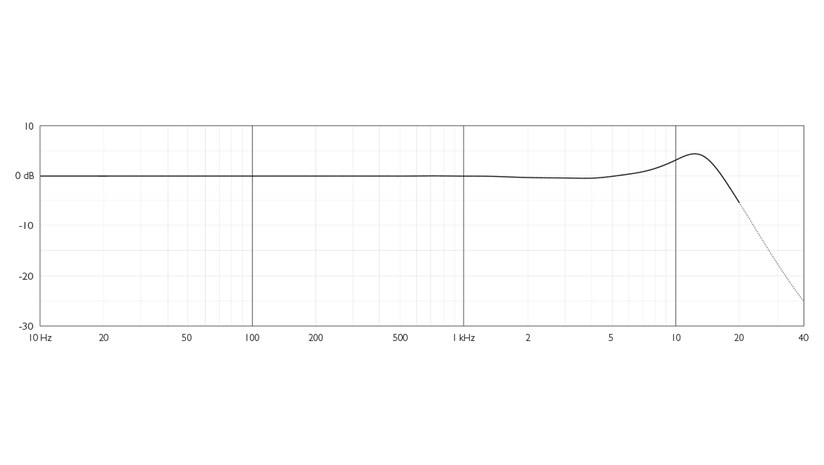

Frequency response graphSystem.Collections.Generic.List`1[DpaMicrophones.Core.Models.Dtos.ProductDtos.AssetDto]
Switchable attenuator, filters etc.High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Maximum output voltage, RMS2.0 V
Dynamic rangeTyp. 124 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption4.5 mA
Rated output impedance100 Ω
Equivalent noise level, ITU-R BS.468-4Typ. 24 dB (max. 26 dB)
Capsule diameter19 mm (0.75 in)
Directional patternSupercardioid, lobe-shaped
Cartridge typePre-polarized condenser
Distortion, THD < 1%134 dB SPL RMS, 137 dB SPL peak
Common mode rejection ratio (CMRR)> 40 dB
Cable drive capability100 m (328 ft)
Effective frequency range, ±2 dB, at 60 cm (23.6 in)70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Principle of operationPressure gradient, with interference tube
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
